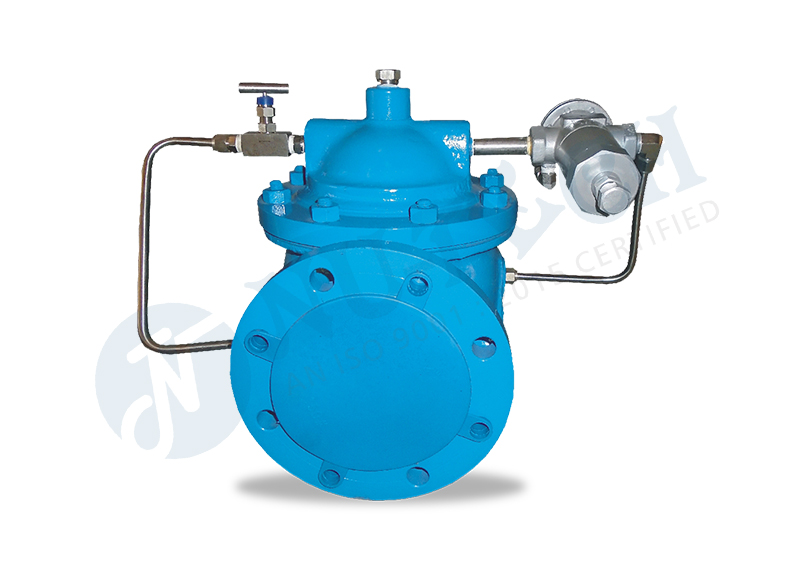

Pressure Relief/Sustaining valve (ACV-201)

NU-TECH ACV Pressure Relief/Sustaining Valves operates when inlet pressure is above the set point, and throttle when pressure is below the field-adjustable set point. The valve will be in closed position if upstream pressure drops below the set point and will fully open when the upstream pressure exceeds the set point.

  • Easily maintained without removal from the line.
  • Replaceable seat ring.
  • Heavy-duty
  • nylon-reinforced diaphragm.
  • Operates automatically off line pressure.
  • Diaphragm assembly Guided top and bottom.

  • Closed under normal operating pressures.
  • Valves opens when pressure rises to the set point
  • Valves will close when system pressure drops below set point.

  • Pressure sustaining with hydraulic check
  • Solenoid (on-off)
  • Pressure relief, sustaining or back pressure control valve
  • Pressure relief and surge anticipator
  • Pressure relief, sustaining & back pressure

End Connection Flanged End, Threaded End
Face to Face Standard Manufacturing Standard
End connection Standard DIN EN 1092-1, ASME B16.5
Testing Standard API 598
Sizes 1/2” to 28”
Class 150#, 300#, PN 6, PN 10, PN 16, PN 25
Media Water
Body Material CI/CS/SS/Alloy Steel etc.
Trim Material SS304/SS316 etc.
Soft Seat Material NITRILE/VITON/EPDM etc.
