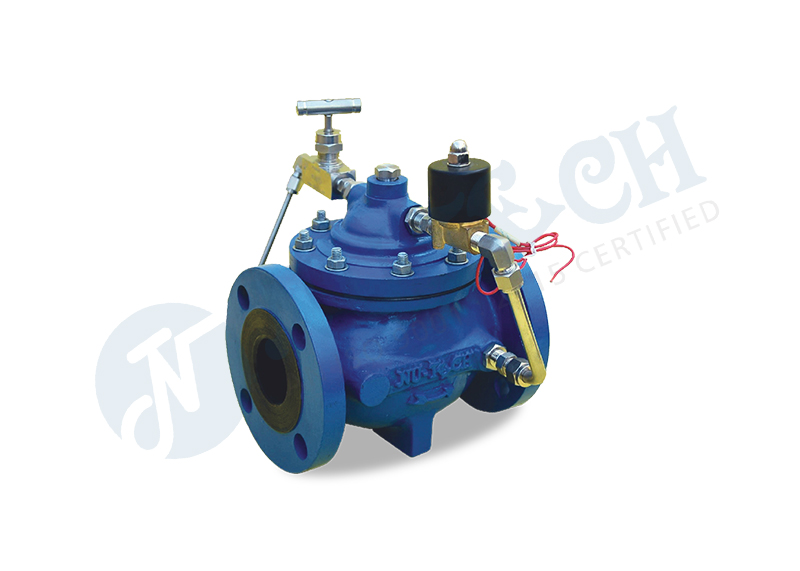

Pump Control/Solenoid On-Off Control valve (ACV-1000)

NU-TECH ACV Pump Control Valves are used to minimize surges commonly associated with the starting and stopping of pumps.

  • Easily maintained without removal from the line
  • Single chamber & double chamber.
  • Replaceable seat ring.
  • Heavy-duty, nylon-reinforced diaphragm.
  • Operates automatically off line pressure.
  • Valves are factory tested.
  • Diaphragm assembly Guided top and bottom.
  • Valves equipped with separate adjustable opening and closing speed controls.

  • It is designed to minimize surges associated with the starting and stopping of pumps.
  • It closed when pump discharge pressure falls below an adjustable minimum, increasing back pressure against the pump.
  • It is designed for booster pumps are installed inline on the discharge of the pump.
  • It is designed for deep well pumps also & it is installed on a bypass line between the pump discharge and the pump check valve

  • Check function.
  • Pressure sustaining
  • Pressure reducing.
  • Rate of flow feature.

End Connection Flanged End, Threaded End
Face to Face Standard Manufacturing Standard
End connection Standard DIN EN 1092-1, ASME B16.5
Testing Standard API 598
Sizes 1/2” to 28”
Class 150#, 300#, PN 6, PN 10, PN 16, PN 25
Media Water
Body Material CI/CS/SS/Alloy Steel etc.
Trim Material SS304/SS316 etc.
Soft Seat Material NITRILE/VITON/EPDM etc.
